DwgImport

Introduce

Paste AutoCAD objects into 3dsmax after copying objects in AutoCAD

But sometimes the dimension of cad objects may not match with 3dsmax scene ,you may be need a configuration dialog to get right setting,you can use "Import test" button in "Manager->AxeSetting" tool to set a matched unit setting for import objects.

Dwgimport

How To

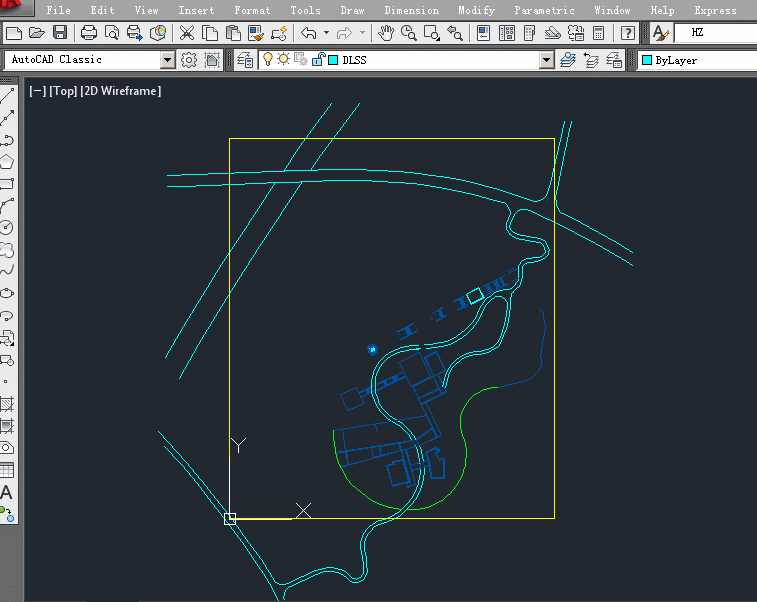

  1. Select objects in AutoCAD and press Ctrl+C to copy them

  2. Switch to 3dsmax ,execute the command.The objects in CAD will be imported (copied) to 3dsmax scense.

Parameters

Tips

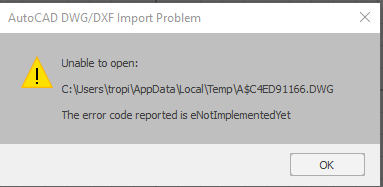

Note that,your version of CAD should match with the version of 3dsmax ,or you will get an error message.

Error by unmatched AutoCAD version

Note That

=>Previous Version of Help

---Total 14,375 views---
